Automatic temperature controlled oil press machine

    The introduction of automatic temperature controlled oil press machine

    Automatic temperature controlled oil press machine is a kind of oil press equipment with the automatic temperature control function, which is widely used in different edible oil processing plants. Automatic temperature controlled oil press machine uses an electric heating coil device to heat the press, and make the oil press machine pre-heated quickly and start the production quickly.

    However, traditional single screw oil press machine only depends on the friction between oil seeds to raise the press temperature slowly. So the advantage of the automatic temperature controlled oil press machine is that it makes the press process more quick, and reduce energy consumption and machine wear.

    The working principle and operating process of automatic temperature controlled oil press machine

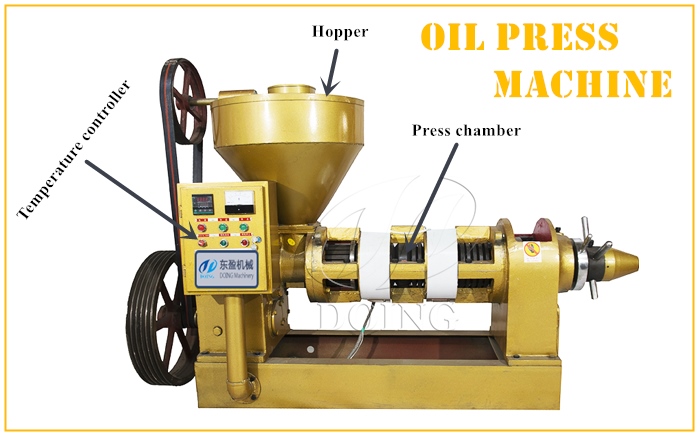

Main structure of automatic temperature controlled oil press machine

    The working principle and operating process of automatic temperature controlled oil press machine are similar to those of traditional single screw oil press machine. They use mechanical force to squeeze the oil out from the oil seeds, so that the natural flavor and nutritional content of the edible oil are retained.

    During operation process, firstly turn on the automatic temperature controlled system to heat the oil press machine to the specified temperature. Then the oil seeds will be transferred from the hopper into the press chamber. Under the squeeze screw rotation, the oil seeds are continuously pushed inward for squeezing oil out. And at last, the pressed oil will flow out from the outlet. By the way, if you want to get more pressed oil or low down the oil residual, multiple press operations can be performed.

    The model and other parameters of automatic temperature controlled oil press machine

    Henan Doing Company can provide the following models of of automatic temperature controlled oil press machine. Different models are suitable for different edible oil processing plants. Customers can choose the type of automatic temperature controlled oil press machine according to their specific needs.

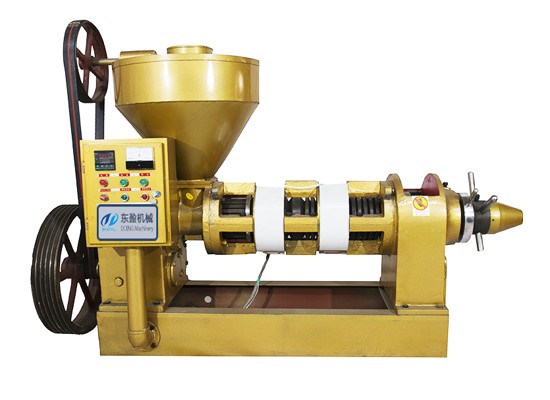

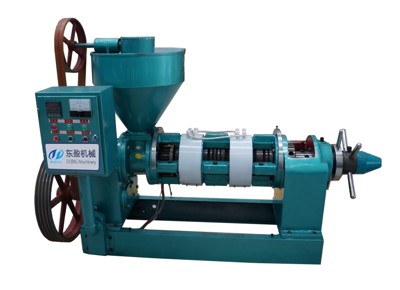

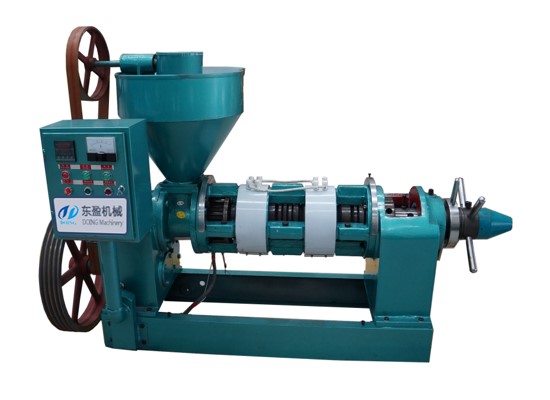

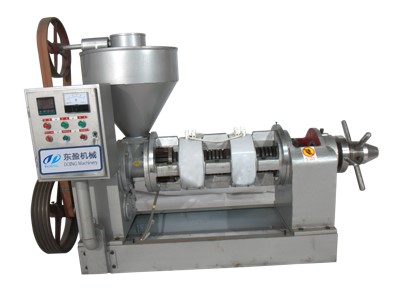

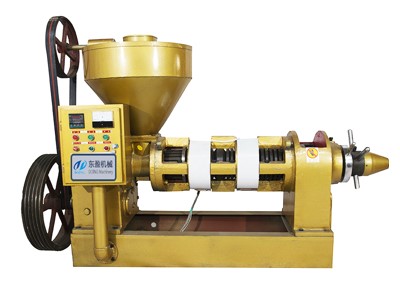

Model	Machine photo	Input capacity(tons/24-hour)	Oil residual rate of cake(％)	Revolving speed of pressing screw(r/min)	Power(kw)	Overall dimensions(mm) Height*Width*Depth	Weight(kg)	Temperature controlled power(kw)
YZYX90WK		≥3	≤7.8	36～42	5.5	1200×550×1000	300	2.4
YZYX10WK		≥3.5	≤7.8	26-36	7.5	1620×580×1165	570	2.65
YZYX10-8WK		≥4.5	≤7.8	26-41	11	1720×580×1165	590	2.65
YZYX120WK		≥6.5	≤7.6	32～41	15	1860×622×1275	700	3.6
YZYX130WK		8～10	≤7.6	32～44	18.5	1950×742×1500	900	3.6
YZYX140WK		9～11	≤7.6	28～38	22	2010×690×1430	830	3.6

    The features of DOING automatic temperature controlled oil press machine

    1. Automatic temperature controlled, shortening the pre-heating time and reducing energy consumption. When the press process is interrupted, the temperature of the press chamber can be kept constant.

    2. Widely used to press different oil seeds, such as peanut, rapeseed, sunflower seed, soybean, and so on.

    3. Low investment cost, small floor area, easy operation and maintenance, saving manpower and material resources.

    4. High quality, safety and reliability, and has long service life.

    In order to improve oil yield and working efficiency, many customers equip a drum roaster and a screw conveyor in front of the automatic temperature controlled oil press machine. The drum roaster can adjust the temperature, humidity and internal structure of the oil seeds, so as to shorten the outflow path of the oil, and thereby improve the oil yield rate. If you need automatic temperature controlled oil press machine, please contact us directly.
