Automatic temperature controlled integrated oil press machine with vacuum filter

    The introduction of the integrated oil press machine

    Automatic temperature controlled integrated oil press machine with vacuum filter is a kind of oil press machine very popular in the market at present, because it adds the vacuum filter based on the design of automatic temperature controlled oil press machine. Customers don't have to buy plate filter any more, and the vacuum filter can remove the impurities in the crude oil.

    The structure of the integrated oil press machine

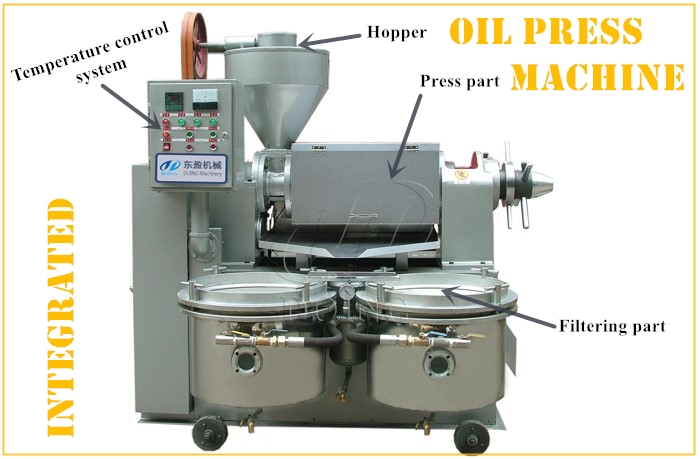

Structure of automatic temperature controlled integrated oil press machine with vacuum filter

    Automatic temperature controlled integrated oil press machine with vacuum filter mainly consists of three parts: temperature control system, press part and filtering part.

    The model and other parameters of the integrated oil press machine

Model	Machine photo	Input capacity                     (tons/24-hour)	Oil residual rate of cake(％)	Revolving speed of pressing screw(r/min)	Power                     (kw)	Overall dimensions(mm) Height*Width*Depth	Weight                     (kg)	Temperature controlled power(kw)	Filter oil power(kw)
YZYX70WZ		≥1.3	≤7.8	35～45	4	1500x1100x1620	500	1.5	0.55
YZYX90WZ		≥3	≤7.8	32～40	5.5	1310x1180x1410	560	2.4	0.55
YZYX10WZ		≥3.5	≤7.8	32～40	7.5	1718x1450x1735	973	2.65	1.1
YZYX10-8WZ		≥4.5	≤7.8	32～40	11	1818x1450x1735	1042	2.65	1.1
YZYX120WZ		≥6.5	≤7.6	32～42	15	2120x1350x1890	1080	3.6	1.1
YZYX130WZ		8~10	≤7.6	30-40	18.5	2005×1610×2010	1280	3.6	1.5
YZYX140WZ		9~11	≤7.6	30-44	22	2005×1610×2010	1400	3.6	2.2

    The features of DOING integrated oil press machine

    1. Temperature controlled, integrated press and filtering, improving the efficiency of oil press and the quality of crude oil.

    2. Wide range of uses, can be used for pressing different oil seeds, such as peanut oil, rapeseed oil, sunflower oil, soybean oil, etc.

    3. Advanced process, safe and stable, easy to maintain, and has a long service life.

    Doing Company integrates sales and production, and can directly provide customers with factory price oil press machine, saving intermediate costs for customers. DOING automatic temperature controlled integrated oil press machine with vacuum filter has exported to more than 20 countries. If you need, welcome to directly leave a message and tell us your specific requirements.
