Drum roaster

The introduction of drum roaster

Drum roaster is a kind of equipment for frying various kinds of oil seeds when making vegetable oil, usually used in small or medium scale vegetable oil mill plant. The oil seeds that can be processed by drum roaster are peanut/ groundnut, soybean, sunflower seeds, rapeseed, sesame, palm kernel, etc.

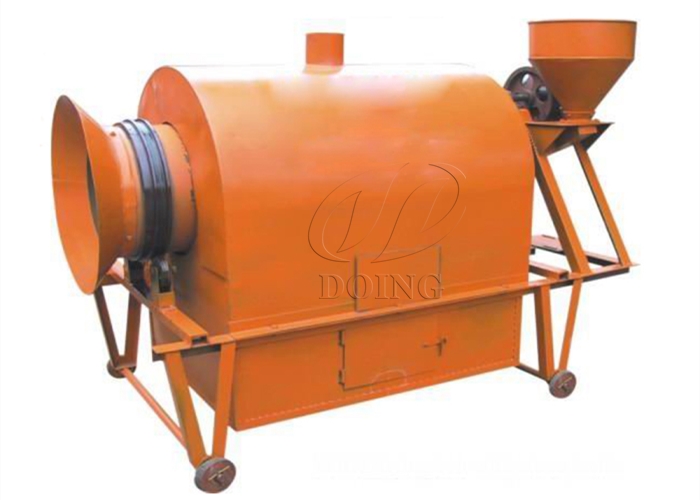

The detailed pictures of drum roaster

Drum roaster is mainly composed of a machine frame, a hopper, a drum and a fire shield. The function of drum roaster is to adjust the temperature and moisture of the oil seeds, fully destroy the cell structure of the oil seeds, so as to improve the oil yield and improve the quality of oil and cake.

The operation process of drum roaster

First, pre-heat the drum roaster.

Then, put the oil seeds into the hopper for feeding into the drum roaster.

Next, under the continuous rotation of the drum roaster, the oil seeds will be flipped and fully heated.

At last, after the roasting process is finished, the oil seeds will be transported to oil presser for extracting oil out or directly stored for use later.

The 3D animation of drum roaster working process

The type of drum roaster which Doing Company provides

According to different heating methods, the drum roaster can be divided into three types: stove fired heating type, electric heating type and gas heating type.

The specific models of these three types of drum roaster

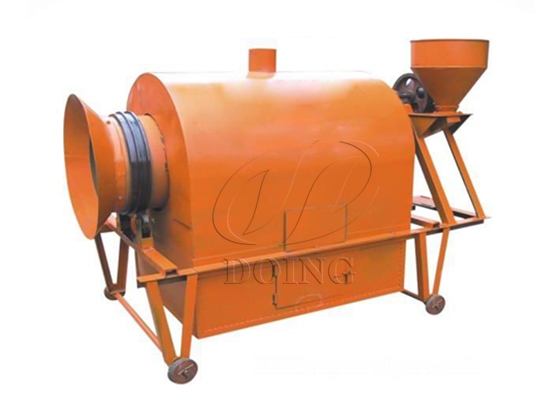

Stove fired heating type drum roaster
	Model	YHCZ80Z	YHCZ90Z	YHCZ100Z
	Input capacity (kg/h)	100-150 kg/h	150-200kg/h	200-250 kg/h
	Revolving speed (r/min)	15-20	15-20	15-20
	Effective volume (kg/time)	25-50	35-70	50-85
	Matching power (kw)	2.2	2.2	2.2
	Overall dimensions(mm) Height*Width*Depth	1880x964x1410	2038x1115x1646	2057x1204x1710

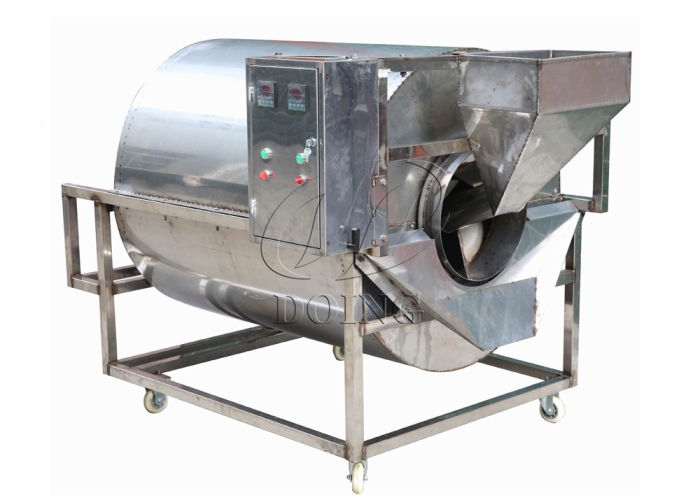

Electric heating type drum roaster
	Model	YDCZ150BZ	YDCZ200BZ
	Input capacity (kg/h)	180-240 kg/h	240-310 kg/h
	Revolving speed (r/min)	15-20	15-20
	Effective volume (kg/time)	75	100
	Matching power (kw)	1.5	1.5
	Electric heating power (kw)	30	42
	Overall dimensions(mm) Height*Width*Depth	1930x1080x1342	1930x1180x1343

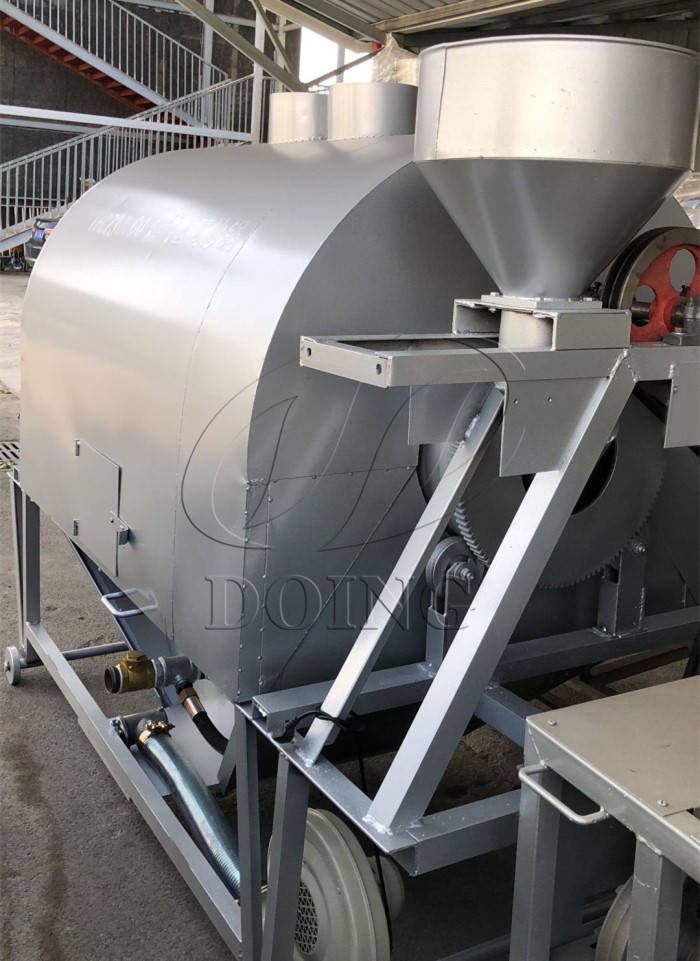

Gas heating type drum roaster
	Model	YHCZ200RQ	YHCZ250RQ	YHCZ300RQ
	Input capacity (kg/h)	220-300 kg/h	300-375 kg/h	360-450 kg/h
	Revolving speed (r/min)	15-20	15-20	15-20
	Effective volume (kg/time)	100	125	150
	Matching power (kw)	2.2	2.2	2.2
	Gas pipeline interface size (mm)	DN20	DN20	DN20

The features of drum roaster

1. Uniform heating effect, controllable temperature for meeting the needs of various oil seeds.

2. Simple structure, easy to operate, and time and effort saving.

3. Good performance, good quality, durable and long service life.

The drum roaster is mainly often a necessary machine in oil seeds pretreatment process. No matter your oil mill is small scale or medium scale, increase the oil yield and improve the quality of oil must be that you want. So buy a set of drum roaster to work with the oil presser is a good choice for you. Please contact Doing Company for latest quotation.
