Cold oil press machine

Cold oil press machine is a kind of oil press machine. It can directly compress raw materials to obtain edible oil. The temperature of the entire pressing process does not exceed 65°C. The pressed oil and cake retain the original nutritional value and color, while retaining the original taste, which is favored by people.

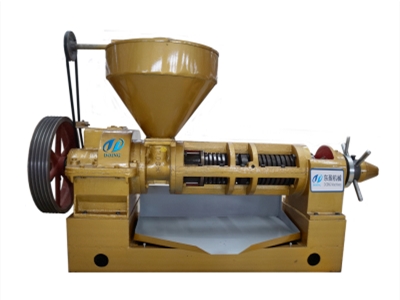

Cold oil press machine

Introduction of cold oil press machine

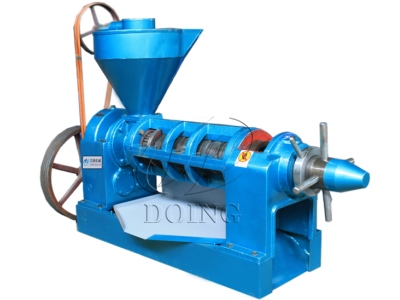

The cold oil press machine designed and produced by Henan Glory Company has a unique screw design, and the oil yield can reach as high as 94%. The production capacity of a single machine is 1-20 tons per day. The cold oil press machine uses the screw shaft to rotate in the press cage to push the raw materials, and simultaneously presses them into cakes and oils. It is a continuous oil press equipment. The intuitive characteristics of the cold press oil machine are continuous production, large single-machine processing capacity, adaptability to various oil products.

Model and other parameters of cold oil press machine

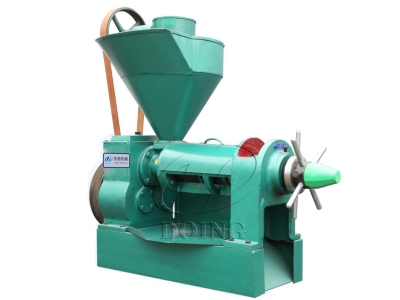

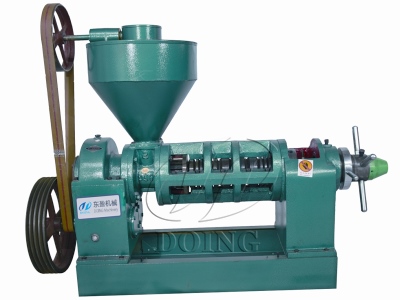

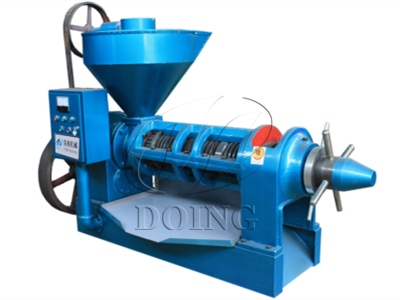

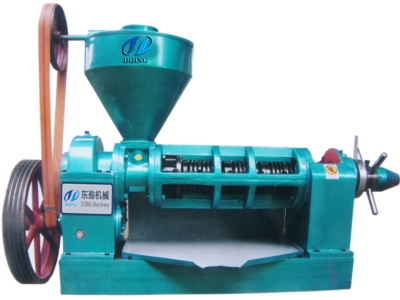

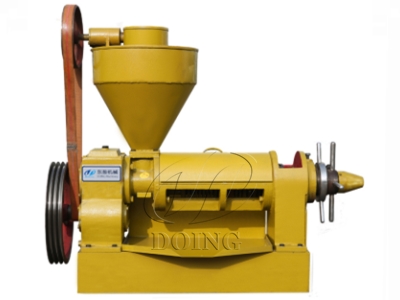

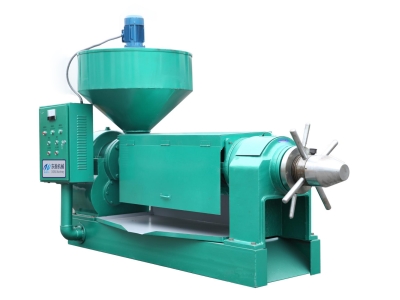

Model	Machine photo	Input capacity(tons/24-hour)	Oil residual rate of cake(％)	Revolving speed of pressing screw(r/min)	Power(kw)	Overall dimensions(mm) Height*Width*Depth	Weight(kg)
YZYX70		≥1.3	≤7.8	36～42	4	1090×405×806	195
YZYX90		≥3	≤7.8	32～42	5.5	1200×550×1000	285
YZYX10		≥3.5	≤7.8	26～36	7.5	1620×580×1165	570
YZYX10-8		≥4.5	≤7.8	32～40	11	1720×580×1185	590
YZYX120		≥6.5	≤7.6	32～40	15	1860×622×1275	680
YZYX130		8~10	≤7.6	28～40	18.5	1950×742×1500	825
YZYX140		9~11	≤7.6	28～38	22	2010×690×1430	806
YZYX168		20	≤7.4	32-38	45	2670×1000×1726	1820

Features of cold oil press machine

(1) The cold oil press machine has dynamic pressing, frictional heating, short pressing time, high oil yield, easy crushing of cake, and simple operation.

(2) The raw materials of the cold press oil machine must be strictly selected, otherwise the harmful substances in the raw materials will affect the quality of the oil. For example: cottonseed contains gossypol, and moldy raw materials contain aflatoxin. These will cause harm to the human body.

(3) The cold oil press machine is generally used together with the crusher to improve the oil yield. The extracted oil has a low smoke point and unstable water content, so it is not suitable for long-term storage.

Henan Glory Company has four kinds of cold oil press machines on sale, which are screw edible oil press, automatic temperature control edible oil press, automatic temperature control vacuum filter all-in-one edible oil press, and large edible oil press. Want to know more about cold oil press machine, please feel free to contact Henan Glory Company.
