What equipment is needed to process oil seeds into cooking oil?

To obtain cooking oil from oil seeds, the equipment you need depends on your processing volume or the process you want to use. Basically, the cooking oil processing equipment used mainly includes cooking oil pre-processing equipment, cooking oil pre-pressing equipment, cooking oil press equipment, cooking oil solvent extraction equipment, and cooking oil refining equipment. As a manufacturer of oil seeds cooking oil processing equipment, Henan Glory Company will introduce you in detail below.

1. The processing volume is less than 5 tons per day

For this processing volume, we recommend adopting oil pressing process which can process oilseeds into cooking oil.

---You can directly use our cooker, screw oil press machine and filter, which is very simple and easy to operate and has high efficiency.

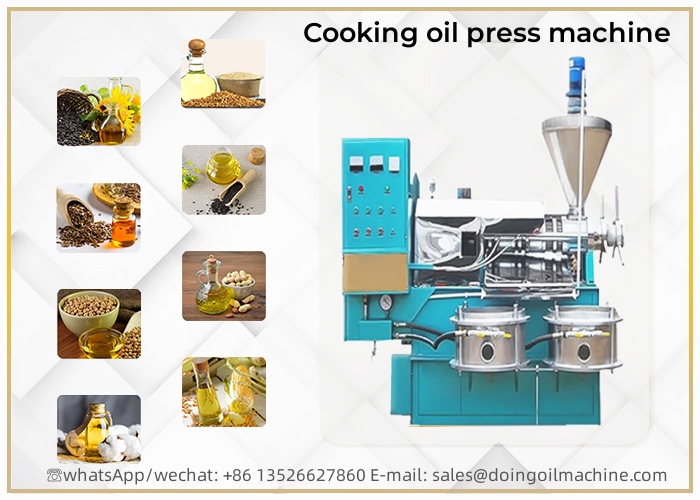

The automatic temperature control oil press machine with filter

---Or use cooker and automatic temperature control oil press machine with filter(1.3-11tpd). These two oil seeds cooking oil processing equipment can complete the steps of steaming, pressing and filtering. There is a automatic temperature adjust system, to regulate the temperature, and help the oil press machine to squeeze more oil out. Besides, it comes with two filter barrels, which can filter impurities and help you get cleaner oil.

2. The processing volume is 5-10 tons per day

For this processing volume, we recommend adopting the cooking oil pressing process.

There are two options: one option is to use the oil seeds cooking oil processing equipment mentioned above, and the other is a small scale production line, including oil seeds pretreatment, oil press and filter equipment. The required equipment is as follows(The following equipment can be configured and selected according to your own needs）:

▪ Vibrating separator + Magnetic separator + Destoner: removes kinds of impurities from oil seeds, avoid impurities from causing wear and tear on cooking oil processing equipment, and ensure oil seeds cleanliness and cooking oil quality.

▪ Huller + Kernel husk separator + Crusher + Flaking mill + Cooker: further pretreatment of oil seeds to put the oil seeds in the most suitable state for pressing and increase the cooking oil yield.

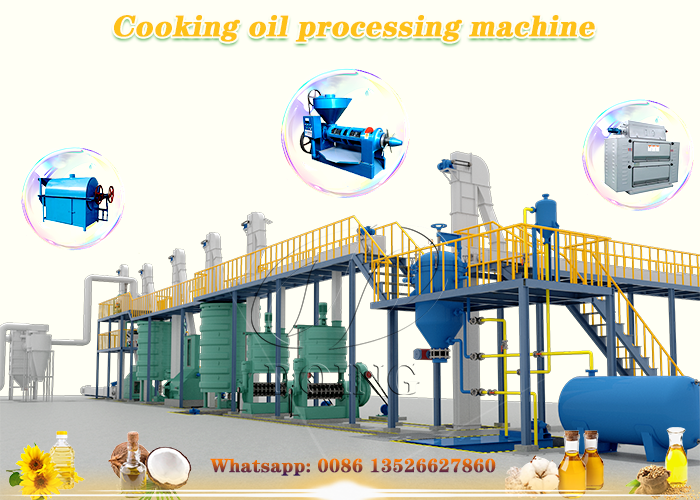

The oil seeds cooking oil processing equipment

▪ Oil press machine - press oil seeds to extract oil, which has the characteristics of beautiful appearance, easy operation and low residual oil rate.

▪ Filter - removes impurities and takes away part of the water. Plate filters and leaf filters are available.

3. The processing volume is more than 20 tons per day

For this processing volume, oil solvent extraction process is preferred. Cooking oil solvent extraction process equipment includes cooking oil pretreatment equipment, cooking oil pre-pressing equipment, cooking oil solvent extraction equipment, and cooking oil refining equipment.

After the above-mentioned cooking oil pretreatment equipment, cooking oil solvent extractor and D.T.D.C. system are required to fully extract cooking oil from oil seeds and oil seed meal. Finally, you need cooking oil refining equipment for further processing. After degumming, deacidification, decolorization and deodorization steps, you can obtain first-class cooking oil that can be sold to the market.

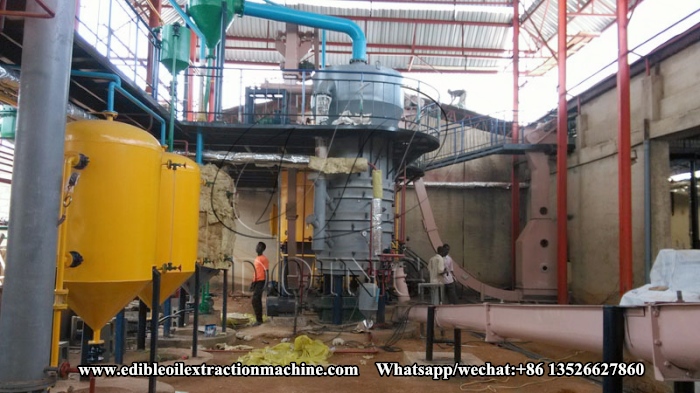

Glory cooking oil solvent extractor equipment

The above is an introduction to the oil seeds processing into cooling oil equipment. If you are interested, you can contact us at any time. We will provide you with the best service and quality.

Doing Holdings--Henan Glory Oil & Fats Engineering Co., Ltd, has been mainly engaged in oil seeds cooking oil processing equipment for many years, which has the most advanced cooking oil processing production technology and has the ability to undertake cooking oil production lines projects of various sizes. It has successfully installed oilseeds processing into cooking oil equipment in many places around the world.
