5 TPD cottonseed oil pressing line: Complete setup from cleaning to filtering for startups
FAQ / Chat on line / Give me a price / Date:October 23, 2026
Starting a cottonseed oil business in West Africa raises a practical question: what equipment do you need for a complete production line, and how much oil can you expect to produce?
A 5 TPD cottonseed oil pressing line from Glory Oiltech (Henan Glory) provides a practical solution for small and medium-scale oil processing businesses. Designed as a compact complete cottonseed oil pressing line, it integrates the main processing stages from raw cottonseed cleaning to crude oil filtration, helping new operators establish a coordinated production process without sourcing each machine separately.
Small scale cottonseed oil pressing line
Complete Process Flow of a 5 TPD Cottonseed Oil Pressing Line
A typical cottonseed oil pressing line from cleaning to filtering follows this process:
Raw Cottonseed → Cleaning → Hulling → Kernel-Shell Separation → Cooking → Screw Pressing → Crude Oil Filtration
| Processing stage | Main equipment | Function |
|---|---|---|
| Cleaning | Air separator, magnetic separator | Remove dust, light impurities, and metal particles |
| Hulling | Double toothed roller crusher | Crack cottonseed shells to release the kernels |
| Kernel-shell separation | Separating screen | Separate kernels from hulls before pressing |
| Cooking | Drum cooker | Adjust temperature and moisture to prepare kernels for pressing |
| Pressing | Screw oil press | Extract crude cottonseed oil through mechanical pressure |
| Filtering | Plate-and-frame filter press | Remove suspended solids from crude oil |
| Material handling | Screw conveyors | Transfer materials between processing stages |
In this line, hulling and separation help reduce the amount of shell entering the press, while proper conditioning supports efficient oil extraction. Screw conveyors can connect the main machines to reduce manual handling and maintain a continuous production flow.

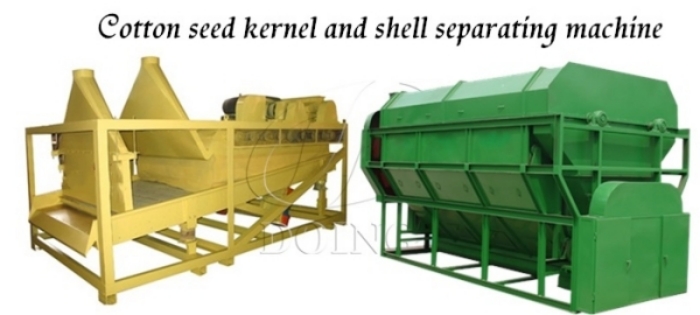

Cottonseed kernel and shell separating machine
The final equipment configuration depends on the condition of the incoming cottonseed, the required processing capacity, and the available workshop space.
Cottonseed Oil Yield and Daily Output
Cottonseed oil content typically ranges from 14% to 25%, with approximately 23% commonly used as a planning reference. For a properly configured mechanical pressing line, the expected crude oil output rate is around 15%, while residual oil in the press cake can be controlled at approximately 7%–8%.
These figures represent different indicators: oil content refers to the oil present in the raw material, crude oil output refers to the oil obtained from processing, and residual oil refers to the oil remaining in the press cake.

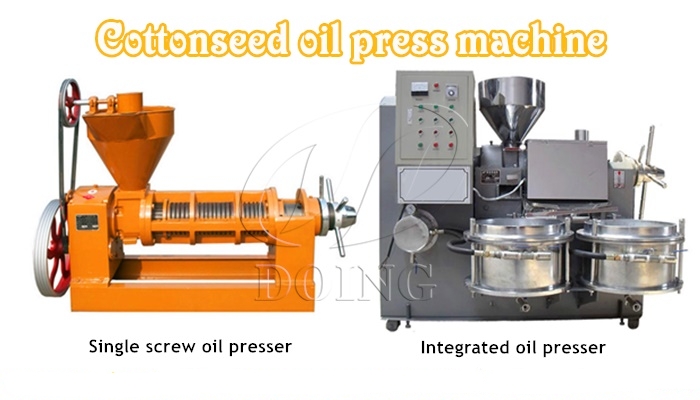

Cottonseed oil press machine from Glory Oiltech
For example, if the capacity of a 5 TPD cottonseed oil pressing line refers to 5 metric tons of raw cottonseed processed per day, an output rate of 15% would give the following estimate:
5,000 kg × 15% = approximately 750 kg of crude cottonseed oil per day.
Actual output varies with cottonseed quality, moisture content, hulling and separation efficiency, and conditioning conditions. The calculation assumes that the 15% output rate is based on raw cottonseed weight.
Why Is a Compact Cottonseed Oil Pressing Line Suitable for Startups?
A compact oil pressing line offers a manageable starting capacity without requiring the investment associated with a larger industrial plant.
Integrated processing: A complete line coordinates the main stages, simplifying equipment selection and installation planning.
Practical operation: Continuous conveying can reduce manual handling, while the degree of automation can be matched to local labor and power conditions.
Flexible project planning: The initial layout can take future storage or refining requirements into account.
Simplified supplier coordination: Sourcing the main equipment from one supplier helps reduce interface problems between processing stages.
For projects in West Africa, cottonseed availability, electricity supply, workshop dimensions, and local demand for crude or refined oil should all be considered before finalizing the configuration.

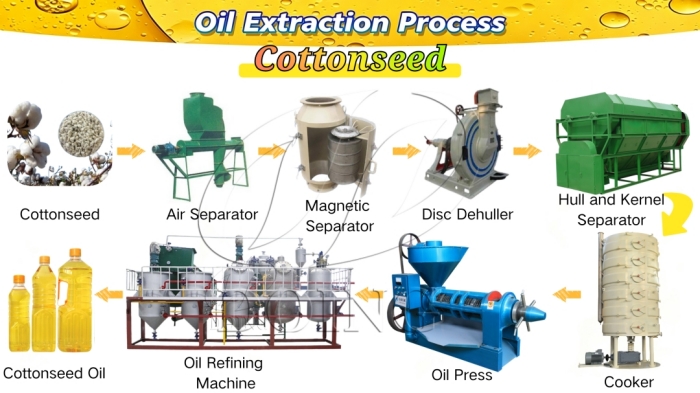

Complete cottonseed oil processing plant from Glory Oiltech
What Should You Prepare Before Ordering?
To select the right cottonseed oil pressing line from cleaning to filtering, clarify four key points:
How many tons of cottonseed can you reliably source per day?
What is the typical quality and moisture level of the local seed?
Is the filtered crude oil intended for direct sale or will you add refining later?
What are the available power supply and workshop dimensions?
Providing clear answers to these questions will help us at Glory Oiltech ensure that the equipment configuration and layout we propose are more precisely aligned with your actual operating conditions.
Frequently Asked Questions
Can cottonseed hulls from a cottonseed oil pressing line be used commercially rather than discarded?
Yes. Cottonseed hulls separated during dehulling do not have to be discarded. They can be used as a roughage component in livestock feed, as a substrate for mushroom cultivation, or as biomass fuel to heat the cooking kettle in the production line. In some regions, finely ground cottonseed hulls may also be blended into oilseed meal or other by-products to increase the overall value recovered from processing. The most suitable use depends on local downstream market demand.
Does a 5 TPD cottonseed oil pressing line require a special floor height or foundation?
Most equipment in this compact production line can be installed on a level concrete floor without costly foundation pits. The cooking kettle and screw conveyors require sufficient clearance for installation, operation, and maintenance. Particular attention should be paid to the discharge height to ensure there is enough room for collection containers. The workshop should also have adequate ventilation and dust collection to reduce cottonseed dust accumulation and associated safety risks.
What problems can occur if damp or moldy cottonseed is fed directly into the pressing line?
Damp or moldy cottonseed can reduce oil extraction efficiency and result in crude oil with a darker color and more impurities, increasing the load on the filtration system. It can also compromise the quality of the cottonseed meal, potentially making the by-product unsuitable for sale as animal feed, and may accelerate corrosion of equipment components. Cottonseed should be stored under dry conditions, and mold-damaged seeds should be sorted out before processing.
How many operators are needed to run a 5 TPD cottonseed oil pressing line?
Under normal, stable operating conditions, approximately 2–3 workers can manage daily operations on this compact continuous production line. Material handling conveyors reduce the need for manual transport. Operators can divide responsibilities among raw material feeding, equipment monitoring, and the collection of crude oil and press cake. The actual staffing requirement may vary depending on workers' experience and whether they also handle auxiliary tasks such as raw material cleaning and finished-product transfer.
Plan Your Cottonseed Oil Extraction Line with Glory Oiltech
Choosing the right equipment configuration from the beginning can help you avoid unnecessary investment and build a production line suited to your actual operating conditions.
Glory Oiltech can help you plan a complete cottonseed oil pressing line from cleaning to filtering, with an equipment list, process flow, and preliminary layout based on your project requirements.
Contact us with your raw material type, target daily capacity, workshop dimensions, and final oil requirements. We can then discuss a suitable 5 TPD cottonseed oil pressing line configuration and estimate the expected crude oil output for your project.
Planning a 5 TPD cottonseed oil project? Contact Glory Oiltech to discuss your requirements and request a tailored production line proposal.
