1-5tph complete palm oil processing machine

Oil press machine / Chat on line / Give me a price / Date:2022-11-18

1-5tph complete palm oil processing machine is newly and specially designed by Henan Doing Company engineers. 1-5tph small scale palm oil processing machine adopts international advanced and mature palm oil extraction technology to extract palm oil. It is suitable for small palm oil mill and palm oil production business. What's more, this kind of palm oil processing machine with low cost and high production rate.

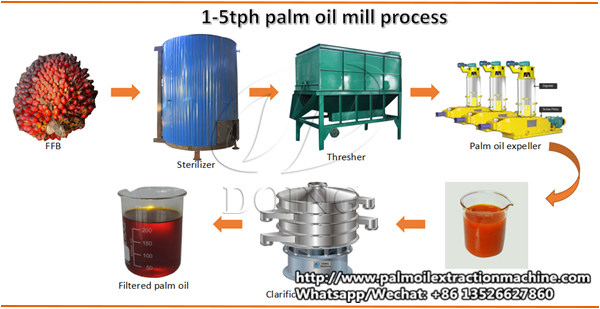

The above picture is 1-5tph small scale palm oil processing machineryThe above picture is 1-5tph small scale palm oil processing machinery

Equipment which directly related to the 1-5tph palm oil processing machine are divided into five systems as follows:

Palm fruit reception station:

Used for loading palm fruit brunch from plantation,transport to sterilizer. Reception station adopt steel structure and concrete structure. Save equipment cost and construction cost.Have hydraulic control system, hydraulic door open/off automatic achieve continuous operation. Reduce operator, operate more easily and improve work efficiency.

Palm fruit reception stationPalm fruit reception station

Palm fruit sterilizer station:

In small scale palm oil extraction process, the vertical palm fruit sterilizer is used. The vertical palm fruit sterilizer uses direct steam to process palm fruit, which can reduce activity of the enzyme,prevent the rancidity, ensure the good quality of the crude oil. At the same time, it is good for the threshing process.

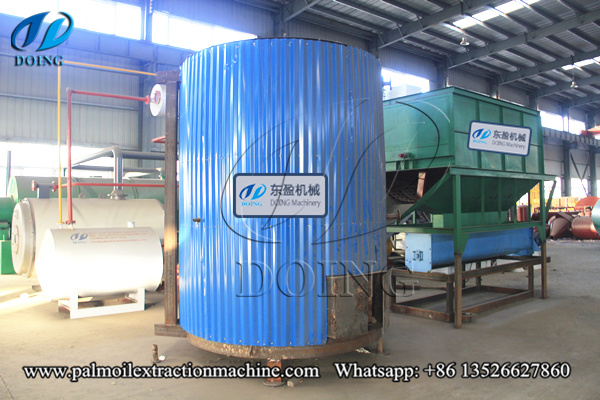

Small scale vertical palm fruit sterilizerSmall scale vertical palm fruit sterilizer

Palm fruit threshing station:

Palm fruit thresher is used for separate empty fruit bunch and palm fruit. According to the different production scale of palm oil mill plant, we can provide different types of palm fruit thresher machine to meet the production needs, like: simply type palm fruit thresher mahcine and drum type palm fruit thresher machine. In the actual production process of palm oil,Usually we have a spare one, in case one of them not work. When the sterilization process is over, sterilized palm fruit will be convey to next station. The empty fruit bunch came from palm fruit thresher will be conveyed to outside, which can be used as fuel for palm oil mill.

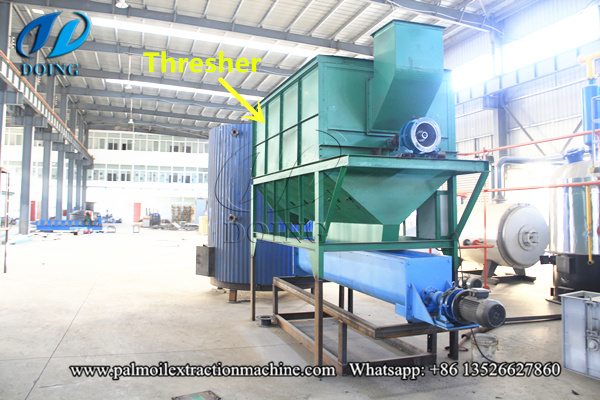

Small scale palm fruit threshing machineSmall scale palm fruit threshing machine

Palm fruit digesting & pressing station:

Sterilized palm fruit will be conveyed to palm fruit digestor.There are blades in digestor, blades will be rolling by motor which is on the top of digestor. Palm fruit peel can be crushed by blades, besides we will fill the steam in digestor for heating. Palm fruit pulp cell can be destroyed under the high temperature condition, after that the palm pulp will be sent to double screw palm oil presser to squeeze out most of palm oil.

1tph double screw palm oil presser1tph double screw palm oil presser

Crude palm oil clarification station:

A mixture of oil, water, and solids from the bunch fibres is delivered from the palm oil digesting & pressing station to a clarification tank of palm oil mill equipment machinery. In the conventional process, separation of the oil from the rest of the liquor is achieved by settling tanks based on gravity. The mixture containing the crude oil is diluted with hot water to reduce its viscosity. A vibrating screen helps remove some of the solids. The oil mixture is heated to 85-90°C and allowed to separate in the clarification tank. A settling time of 1-3 h is acceptable. Oil from the top is skimmed off and purified in the centrifuge prior to drying in vacuum dryer. The final crude palm oil is then cooled and stored. The lower layer from the clarification tank is sent to the centrifugal separator where the remaining oil is recovered. The oil is dried in vacuum dryers, cooled and sent to storage tanks.

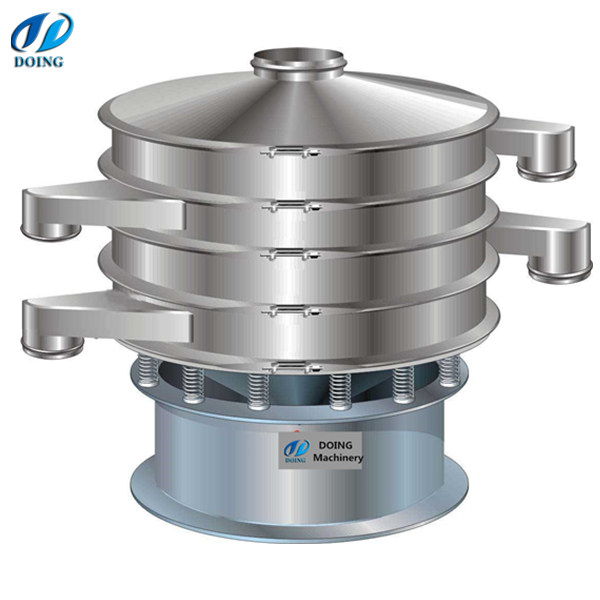

Crude palm oil clarification machine mainly used to filter the crude palm oilCrude palm oil clarification machine mainly used to filter the crude palm oil

Henan Doing Company have been specialized in palm oil processing plant for decades. Our professioanl engineers can help you design and install palm oil processing machinery according to your capacity and requirements. If you want set up a palm oil mill plant in Nigeria, Malaysia, Indonesia, Or other countries , only tell me your production capacity and budget , our engineers will design suitable palm oil processing solutions for you.
